Practical Application Cases and Experimental Results of Electromagnetic Heating Cabinet in Large Graphite

Drying Kilns

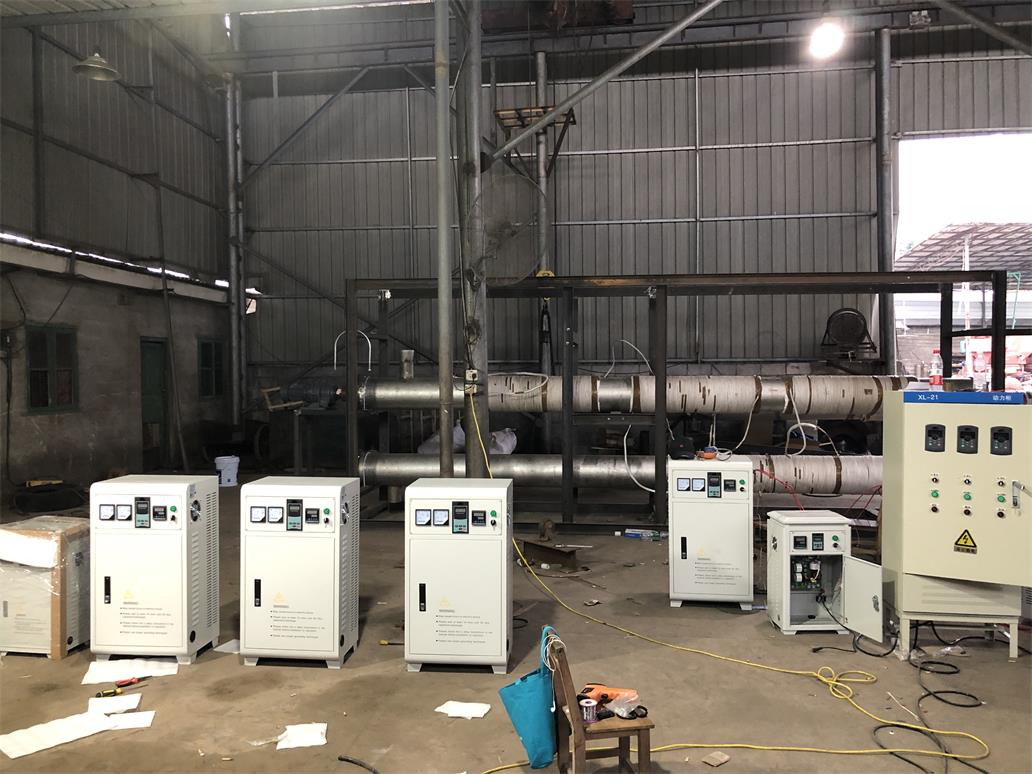

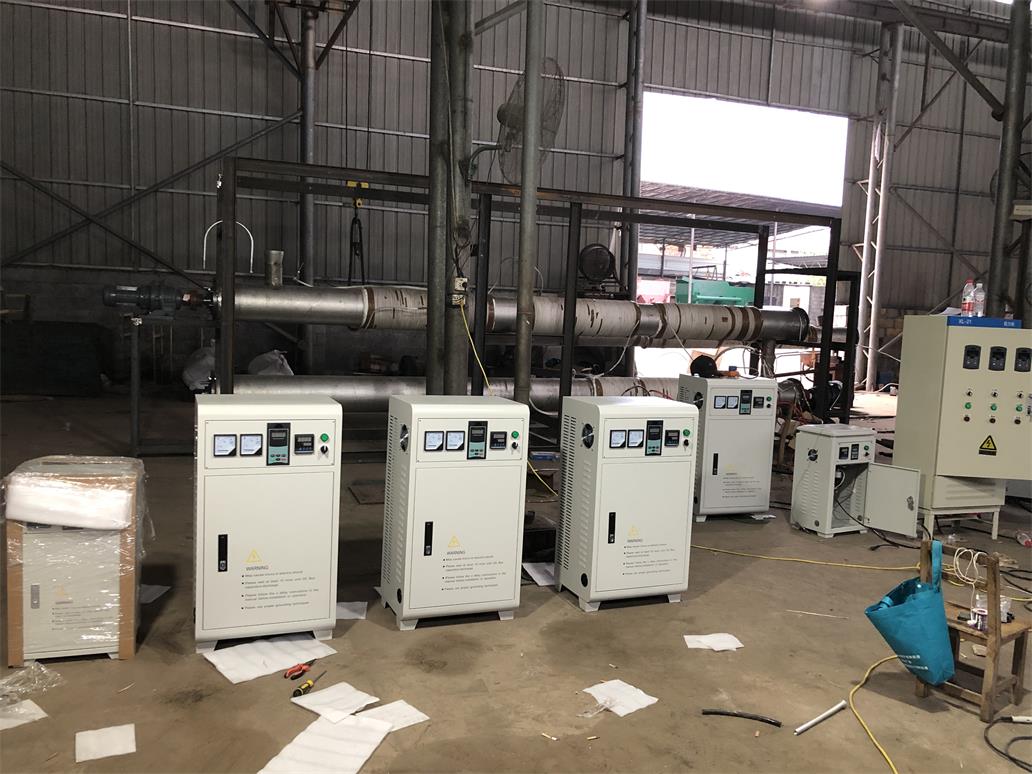

Electromagnetic heating cabinets have a wide range of applications in the field of graphite drying. Here is a case study of using electromagnetic heating cabinets for graphite drying:

Case Description:

A certain company is a manufacturer of graphite products, and they need to dry graphite blocks to improve product quality and performance. In order to achieve an efficient, uniform, and energy-saving graphite drying process, they chose to use an electromagnetic heating cabinet.

Process flow:

Preparation: Place the newly made wet graphite block in the graphite drying cabinet.

Setting parameters: Set the heating power, temperature, and drying time of the electromagnetic heating cabinet according to the requirements of graphite drying.

Heating process: Start the electromagnetic heating cabinet, and the electromagnetic heating coil begins to work, generating strong electromagnetic induction and converting electrical energy into thermal energy. The graphite block is subjected to electromagnetic induction, causing a rapid increase in internal temperature and achieving rapid drying.

Temperature control: precise control of the graphite drying process is achieved by controlling the current, frequency, Magnetic flux density and other parameters of the electromagnetic heating cabinet. Monitor the temperature changes of graphite blocks and adjust them according to the set temperature curve to ensure the quality of graphite drying.

Drying completed: When the graphite block reaches the set drying level, the electromagnetic heating cabinet automatically stops heating. The staff takes out the dried graphite block and proceeds to the next step of processing or use.

Experimental results:

Rapid heating: The electromagnetic heating cabinet can quickly provide high temperature, and the heating process is fast, greatly shortening the time for graphite drying.

Uniform heating: The electromagnetic heating cabinet can achieve uniform heating inside the graphite block without waiting for the heat conduction process, avoiding the influence of temperature gradient and thermal stress on the graphite, improving drying uniformity and product quality.

Accurate control: The electromagnetic heating cabinet can accurately control parameters such as heating power, temperature, and time, and can be set and adjusted according to the needs of graphite drying to meet different heating requirements.

Efficient and energy-saving: The electromagnetic heating cabinet directly converts electrical energy into thermal energy, eliminating the energy conversion process in traditional combustion methods, reducing energy loss, and achieving significant energy-saving effects.

Safety and environmental protection: The electromagnetic heating cabinet is smoke-free and dust-free, with no exhaust emissions, and has no pollution to air quality and the environment. The operation is safe and reliable.

The above is a case study of using an electromagnetic heating cabinet for graphite drying. The electromagnetic heating cabinet can provide fast, uniform, and precise control of heating effect in graphite drying, improve drying quality, and have the characteristics of high efficiency, energy conservation, environmental protection, and safety.
